Filament Winding Technology for Predictable Safety
In industrial and commercial projects, fire water storage is a safety-critical component of planning. Requirements arise from building regulations, fire protection concepts and insurance provisions. At the same time, schedule and cost certainty are central priorities. Large-volume tanks must function reliably over the long term – under ground loads, traffic loads and varying operating conditions.
IBK Fibertec develops and manufactures filament-wound GRP tanks in the volume range of 15 to 100 m³ – designed on a project-specific basis and planned in accordance with relevant standards.
Calculated. Documented. Traceable.
Applications

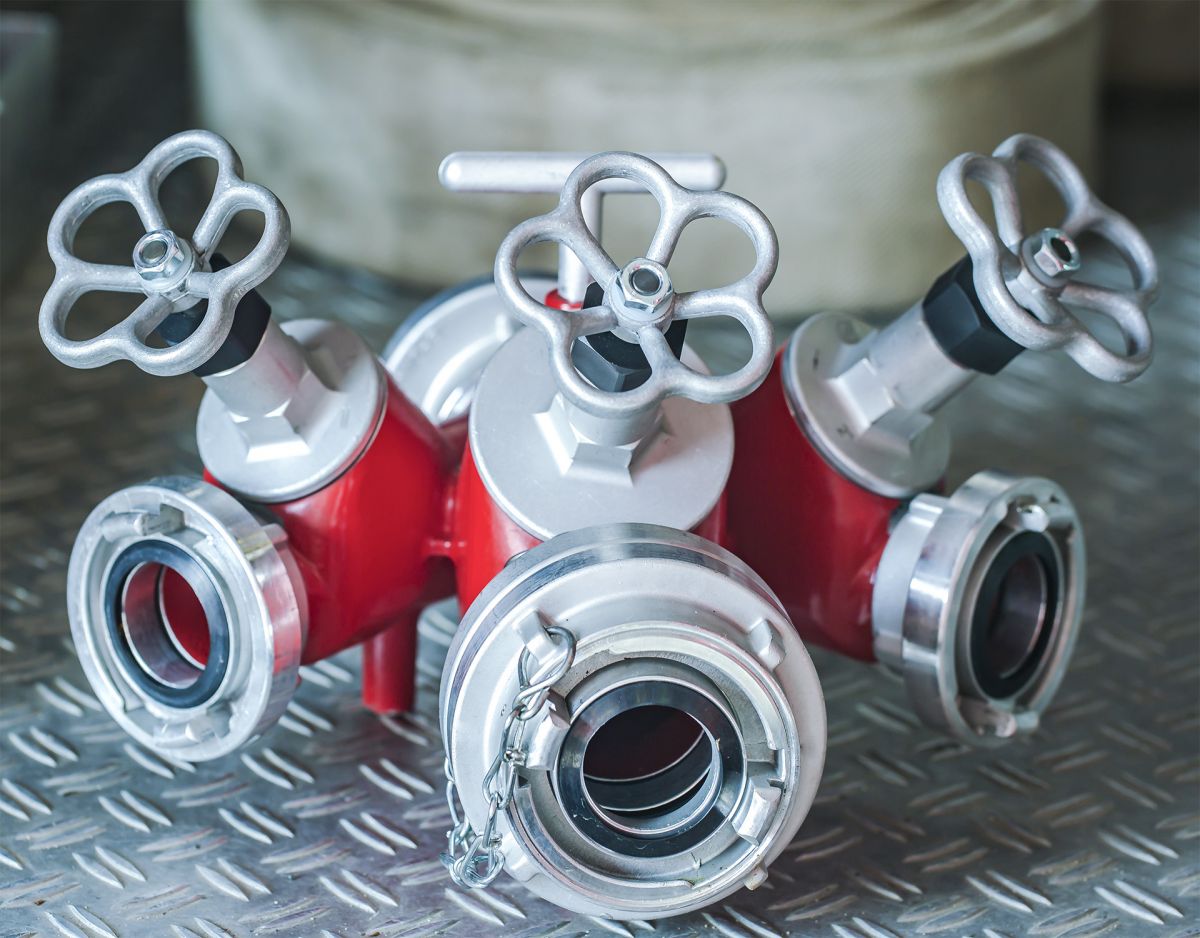

Fire Water Storage

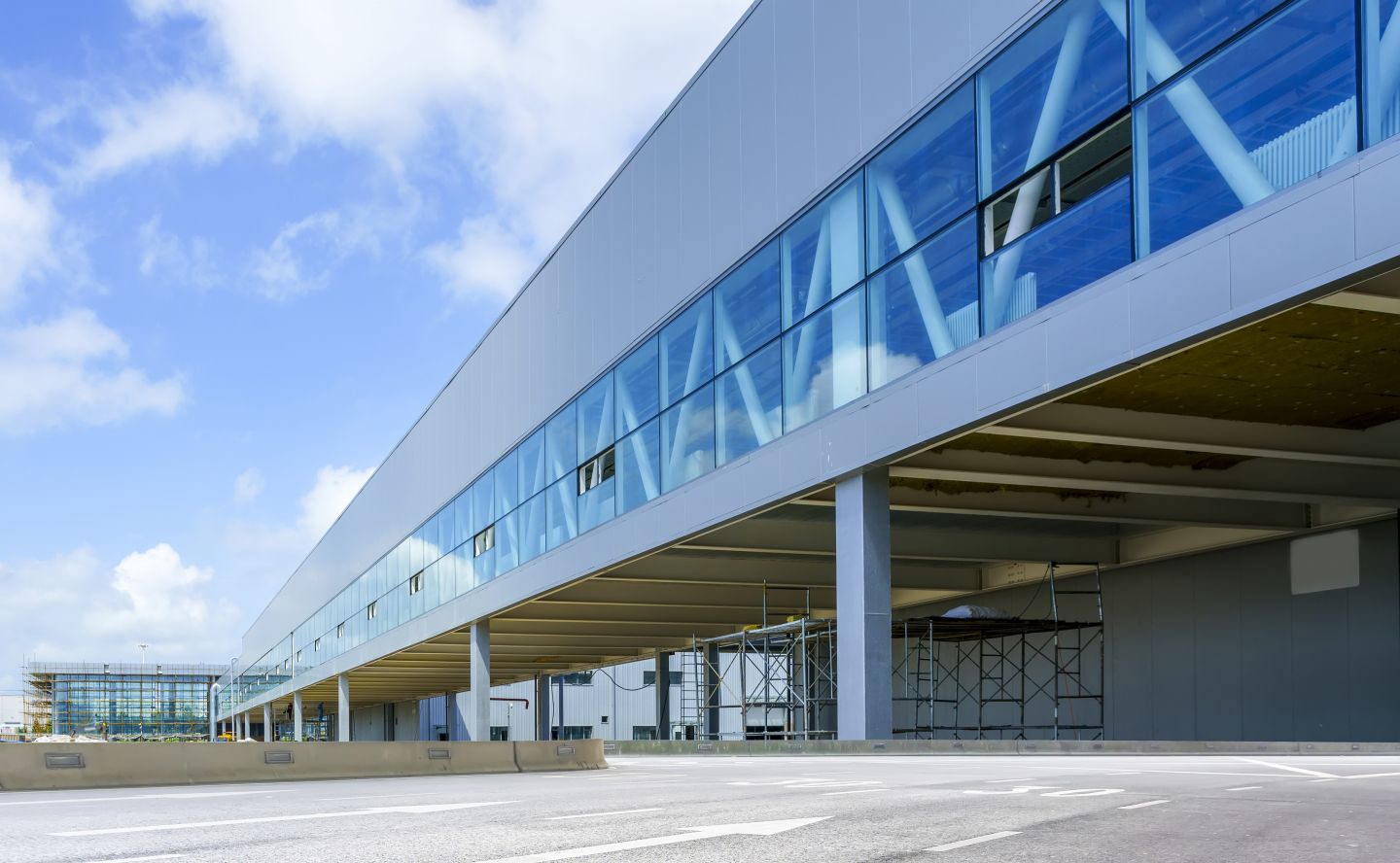

The expansion of energy and infrastructure projects – from data centres to battery storage facilities and logistics sites – places high demands on fire protection and supply security.
Fire water storage is an integral part of project planning and must function reliably over the long term.
- Project-specific design in accordance with DIN 14230
- Integration of draw-off equipment
- Consideration of SLW 30 / SLW 60 for underground installation
- Pump sump and dome solutions
Process and Cooling Water
- Buffer storage
- Industrial plants
- Energy and infrastructure applications
Design takes into account medium, temperature and static loading.
Technical Specifications
- Diameter: 2.0 – 4.0 m
- Length: up to approx. 15 m
- Volume: 15,000 – 100,000 litres
- Above-ground or underground installation
- Inspection opening
- Connection flanges
- Measurement nozzles
- Ring stiffeners
- Tank saddles
Every tank is designed on a project-specific basis.
Project Process
Technical Coordination
Volume, load assumptions, installation situation.
Engineering and Structural Analysis
In-house engineering services.
Filament Winding Production
Manufacturing at our facility in Germany.
Delivery and Interface Coordination
Clear documentation and direct points of contact.
